800m Distance 850nm Infrared Laser Illuminator Module

Fogaanta 800m ee fogaan 850NM


> Gawaarida caqliga leh - Dambid, ciyaar caqli leh, kulul - lafilayo
> - 30 ℃ heerkul qabow oo ka bilaabmaya
> Vcsel leser
> Symchonied Zoom leh kaameeraha ku habboon ee Safaaradda
> Sawir cad oo dhibic ah xadka



    Degis deg deg

    Si faahfaafo

    Cabbir dhan kasta ah

    Nooc

    SG - IR - IR850 - 8M

    Masaafad wax ku ool ah≥800m
    HabVCER
    Shaab maamuus850 ± 10nm (940Nm, 980m si ay ikhtiyaar u yihiin)
    Awoodda gelinta≤20w
    Awoodda laser chip4.4 ± 0.2w
    Awoodda iftiinka4.0 ± 0.3w
    Xagal laser xagalFore xagal 2.0 °, masaafo wax ku ool ah> 800m, dhexroor dulsaarka <φ28m
    Xagal u dhow 70 °, masaafo wax ku ool ah> 80m
    Habka XakamayntaUart_ttl, Rs - 485, Buugga
    Interface isgaarsiintaRS - 485, Ttl232, kontoroolka gacanta
    Borotokoolka IsgaarsiintaPLO - D (9600bps-ka 'D (9600bps-ka caadiga ah, 4800bps, 2400bps ikhtiyaari ah)
    Qaabka shaqadaSii socda
    Nolosha Adeegga> 30000h
    Awoodda gelintaDc12v ± 10%, 2.1a ± 0.2a
    Heerkulka Howlgalka- 20 ° C ~ + 60 ° C
    Heerkulka kaydinta- 40 ° C ~ + 85 ° C

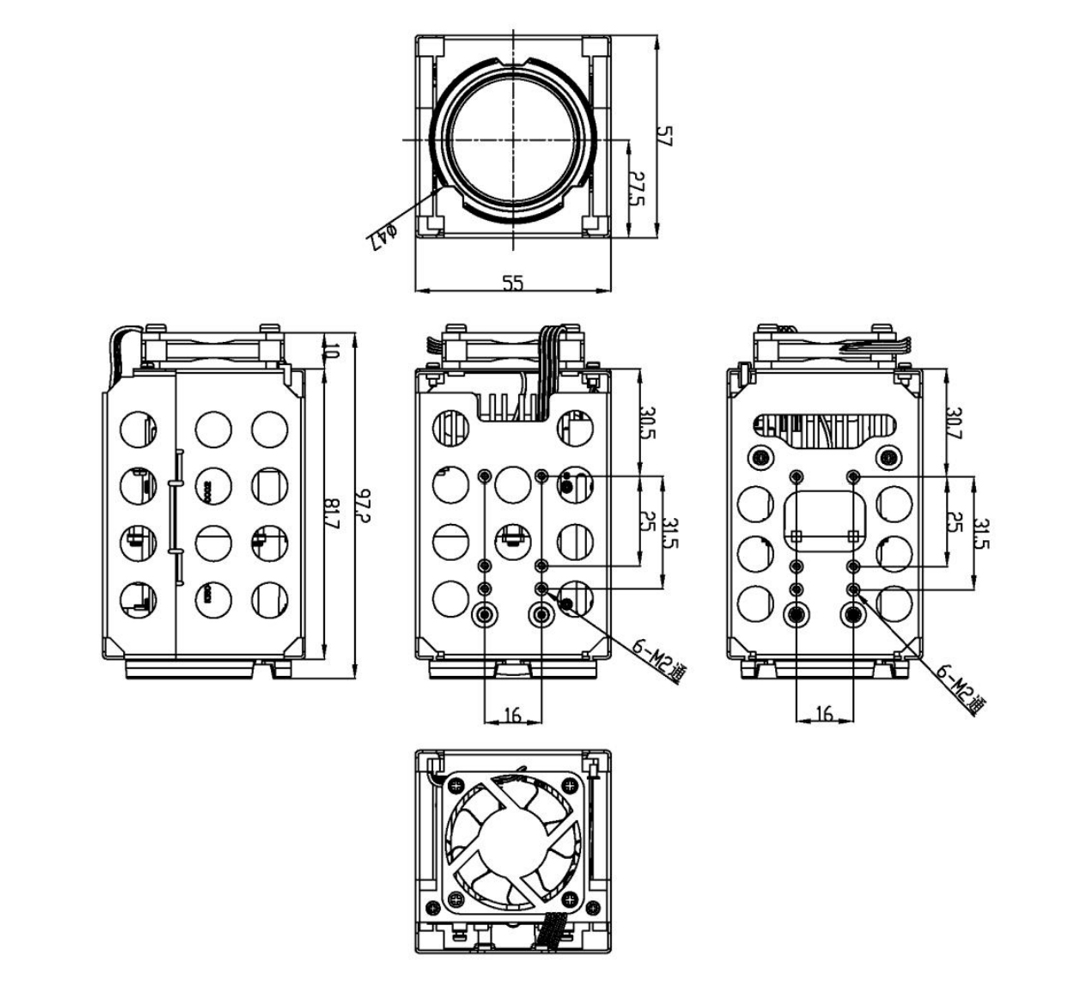

    Cabbir dhan kasta ah97mmx55mmmx57mm
    Culeys230g
