2mp 10X zoom hdtvi, HDCVI, AHD, CVBS 4 ee 1 cutubka Kaamamka Kaarka

Nooc

Sg - zcm2010A

Dareen

Dareenka sawirka sawirka

1 / 2.8 "Sony IMX307 CMOS

Pixels wax ku ool ah

Qiyaastii. 2.13 Megapixel

Bikaaco

Dhererka focal

4.7mm ~ 47mm, 10x zoomka indhaha

Ammaanaansho

F1.6 ~ F2.5

Goobta aragtida

H: 61.5 ° ° 7.1 °

Xoogga fogaanta diiradda

100 ~ 1500mm (ballaaran ~ Telefoon)

Xawaaraha zoom

Qiyaastii. 3s (optical out ~ Tele)

Dareemoleyad

Khiddad

HD - TVI, HDCVI, AHD, CVBS 4 In 1 (OSD menu Menu Menu)

Wax soo saaris

IVP - P Composite wax soo saarka

Qaalkarka

TVI / CVI / AHD: 25 / 30FPs @ 2mp (1920 × 1080)

CBVs: 700tvl

OSD menu

On / DEF (11 * 20 xaraf)

Iftiiminta ugu yar

Midab: 0.01lux / F1.6; B / w: 0.001lux / F1.6

Habeen / habeen

ICR (Auto, Midab, Madoow, Dibadda)

S / N Qiimaynta

44db

Hoos u dhimista 2D

Taageerid

Hoos u dhimida 3D

Taageero (Sare / Dhexe / Hoose)

Qaabka Xoogga Xiisaha

Auto, Buugga, Semi Auto,

Qaabka soo-gaadhista

Auto, Buugga

Xawaaraha xamuulka

Auto, 1/50 (1/60) ~ 1 / 100,000s

Gaagaaban oo gaagaaban

X2

Dheelitirka cad

Auto, gudaha, dibedda, wado iswada, hal riix

Blow

On / off

Xakameynta Gawaarida

Auto, Buugga

Asturnaanta Masjirka

On / off, max. 8 Meelood

Qeexitaan

Laysku hagaajin karo

Is barbar dhigidda

Laysku hagaajin karo

Sullayn

Taageerid

Muraayad

On / off, wareeji, Flip

Qaboojinta Sawirka Muuqaalka

On / off

Is dhexgal

6pin, 2pin 1.25mm Saldhigga Terminalka, oo leh Golaha Dabaasha

Borotokoolka isgaarsiinta

Sony Veeca, plec d, UTC (9.6KBPS 10TBT)

Xaaladaha hawlgalka

- 30 ° C ~ + 60 ° C / 20% ilaa 80% r

Xaaladaha kaydinta

- 40 ° C ~ + 70 ° C / 20% ilaa 95% r

Awoodda sahayda

DC 12V / 90MA ± 6MA (DC Range: 9 ~ 16V)

Isticmaalka korantada

Max. 4W

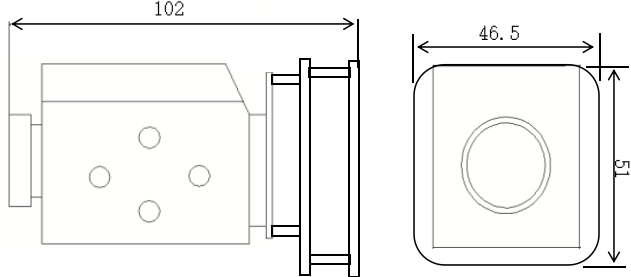

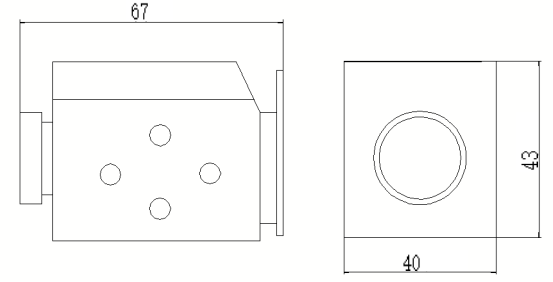

Cabbir (l * w * h)

67mm * 40mm * 43mm (102mm * 46.5mm * 51mm * 51mm *

Culeys

150g (168g oo leh god dabada)
