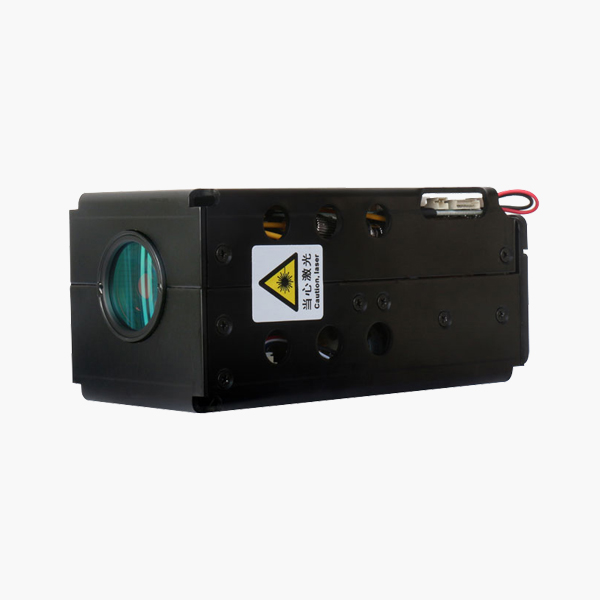

2000m fogaan ah 940nm-ka module iftiin leh oo iftiin leh

> Gawaarida caqliga leh - Dambid, ciyaar caqli leh, kulul - lama garan karo.

> - 35 ℃ heerkulka hoose ee qabow.

> Fiber isugeynta geeska ah ee soosaarka laser (Eel).

> Symchonized Zoom oo leh kaameeraha muuqda ee ku habboon.

> Sawirka cad iyo xadka dhibic.

Hadda la xiriir Degis deg deg

Nooc	SG -IR940 -2K
Masaafad wax ku ool ah	≥2000m
Hab	Fiber isugeyntiisa (geeska korkiisa laser)
Shaab maamuus	940 ± 5nm
Awoodda gelinta	≤40W
Awoodda laser chip	14W
Awoodda iftiinka	≥12w
Xagal laser xagal	Xagal fog 0.8 °, masaafo wax ku ool ah> 2000m, dhexroor dulsaarka <φ28m
Xagal laser xagal	Xagal u dhow 70 °, masaafo wax ku ool ah> 40m, dhexroor dulsaarka <φ56m
Habka Xakamaynta	Uart_ttl, Rs - 485, Buugga
Interface isgaarsiinta	RS - 485, Ttl232, kontoroolka gacanta
Borotokoolka Isgaarsiinta	Pelco - D (9600bps)
Qaabka shaqada	Sii socda
Nolosha Adeegga	> 20000h
Awoodda gelinta	Dc24v ± 10%, 1.4a ± 0.2a
Heerkulka Howlgalka	- 35 ° C ~ + 55 ° C
Heerkulka kaydinta	- 40 ° C ~ + 85 ° C

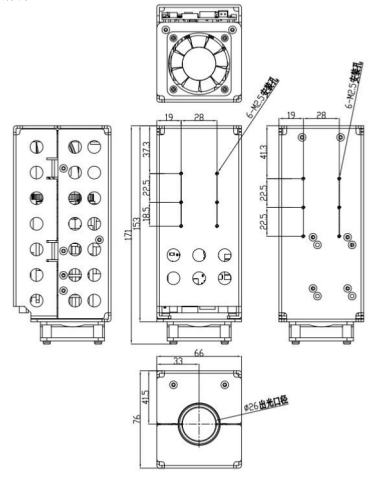

Cabbir dhan kasta ah	171mm * 66mm * 76mm
Culeys	650g
