12um 640x512 USB (CVBS / Nooca - C / Mipi) Module Cabbirka Therntal ee Cabbirka
|
Nambarka moodalka |
SG - VTM06U (C, M) 2 - X |
SG - VTM03U (C, M) 2 - X |
|
Qaybta kuleylka |
||
|
Dareenka sawirka sawirka |
Vox aruum diyaaradda focacle |
|
|
Max. Qaalkarka |
640 × 512 |
|
|
Heerka jir |
≤00hz |
|
|
Pixel Dhexe |
12μm |
|
|
Jawaabta jawaabta |
8μm ilaa 14μm |
|
|
Netd |
≤ 50MK (@ 300K), F # = 1.0 |
|
|
Lens (dhererka fow) |
9.1 / 13/1 / 25 / 35mm |
9.1 / 13/25 / 35mm |
|
F nambarka |
F1.0 |
F1.0 |
|
Goobta Muuqaalka (H × v) |
45.8 ° ° 37.3 ° / 32.9 ° 26.6 ° / 22.6 ° ° 18.2 ° :2 ° 17.3 × 13.8 ° / 12.5 ° × 10.0 ° |
28.7 ° × 21.7 ° / 20.1 ° × 15.1 °: 10.5 × × 7.9 ° / 7.5 ° × 5.6 ° |
|
Muujinta sawirka |
||
|
Zool dijital ah |
1 ~ 8x |
|
|
Sawirka sawirka |
Saxitaanka xiridda |
|
|
Iftiimin & isbarbardhig |
Dhaqdhaqaaq |
|
|
Qalin-gacmeedka midabka |
Kuleylka cad, kuleylka madow, birta casaanka, qaansoroobaad |
|
|
Habka sawirka |
Non - sixitaan la'aan, shaandhaynta dhijitaalka ah ee dhimista dhawaqa, xoojinta faahfaahinta dhijitaalka ah |
|
|
Dareemoleyad |
||
|
Qaabka fiidiyowga |
Soosaarka USB ee caadiga ah, CVBS / nooca - C / MIPI ee ikhtiyaariga ah |
|
|
Interfaces Qalabka Qalabka |
9pin USB ama CVBS, 20pin MIPI |
|
|
Guud |
||
|
Awood |
Dc 4.5v ~ 18v (retvoltige, hoos udhaca, dib-u-dhigista, dib-u-celinta dib-u-celinta) |
|
|
Isticmaalka korantada |
≤.2w |
|
|
Heerkulka shaqada |
- 20 ° C ~ 55 ° C |
|
|
Heerkulka kaydinta |
- 45 ° C ~ 60 ° C |
|
|
Qoyaan |
5 ~ 95%, nonding |
|
|
Gariirka - u adkaysiga |
6.06g, gariir aan kala sooc lahayn, dhammaan tilmaamaha |
|
|
Naxdin - adkaysi |
Dib u soo celi peaktooth, 200g / 4ms, 3 - Axis 6 - Jidka |
|
|

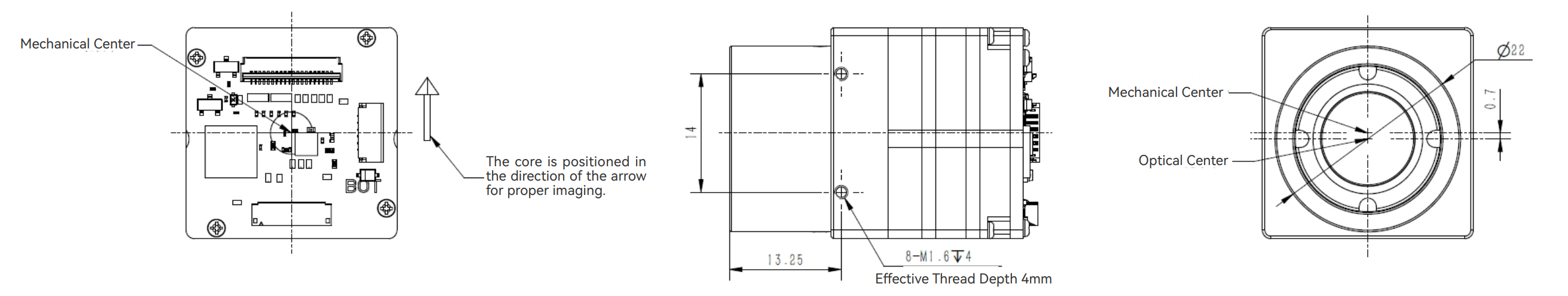

Cabbir (mm) |
38.14 * 25 * 25mm (39.55 * 25 * 25mm oo loogu talagalay 9.1mm lens) |
|
|
Culeys |
≤42G ± 3G (≤38g ± 3G 9G oo ah 9.1mm Lens) |
|
