1280x1024/640x512 Shabakadda iyo Dual Output SWIR Camera Module
Tilmaamid
Qaabka | SG-SWZ12ND2-17510 | SG-SWZ06ND2-17510 | |
Sensor | Dareemka Sawirka | 1/2 ″ SONY InGaAs Global Shutter SWIR Sensor IMX990 | 1/4 ″ SONY InGaAs Global Shutter SWIR Sensor IMX991 |
| Pixels wax ku ool ah | Qiyaastii 1.34MP | Qiyaastii 0.34MP | |
| Cabirka Pixel | 5μm | ||
Lens | Dhererka hirarka jawaabta | 1000 ~ 1700nm | |
| ICR | Taageerada 2 hababka: band ballaaran: 1000 ~ 1700nm band cidhiidhi ah: 1450 ~ 1700nm | ||
| Dhererka Focal | 17mm ~ 510mm, 30x Soo Dhaweynta Aragga | ||
| Aperture | F2.8~F5.5 | ||
| Goobta Muuqaalka | H: 21.3°~0.71°, V: 17.1°~0.57°, D: 27.1°~0.92° | H: 11.6°~0.37°, V: 9.3°~0.3°,D: 14.8°~0.47° | |
| Focus Focus dhow | 1m ~ 10m (Balac ~Tele) | ||
| Xawaaraha Soo Dhaweynta | Qiyaastii 7s (Optical Wide~Tele) | ||
Video | Cadaadis | H.265/H.264/H.264H/MJPEG | |
| Qaraarka | 25/30/50/60fps@1280×1024 | 25/30/50/60fps@640×512 | |
| Heerka Bit Video | 32kbps ~ 16Mbps | ||
| Maqal | AAC / MP2L2 | ||
| Muuqaalka LVDS | 25/30/50/60fps@2MP (1920×1080) | ||
Shabakadda | Kaydinta | Kaarka TF (256 GB), FTP, NAS | |
| Hab-maamuuska Shabakadda | Onvif, HTTP, HTTPS, IPV4, IPV6, RTSP, DDNS, RTP, TCP, UDP | ||
| Casriyeyn badan | Taageero | ||
| cusboonaysiinta Firmware (LVDS) | Kaliya waxa lagu cusboonaysiin karaa firmware-ka iyada oo loo marayo dekedda Network | ||
| Dhacdooyinka Guud | Motion, Tamper, SD Card, Network | ||
| IVS | Tripwire, Gogoldhaafka Xayndaabyada, Dhexgalka, Shayga Laga Tagay, Degdeg ah-Dhaqdhaqaaqa, Ogaanshaha Baarkinka, Qiyaasta Isku-ururinta Dadka, Shayga Maqan, Ogaanshaha Luqadaha. | ||
| Yaraynta Sawaxanka | 2D/3D | ||
| Qaabka Muujinta | Buug-gacmeedka, Baabuurka, Mudnaanta Aperture, Mudnaanta Shutter | ||
| Magdhawga Soo-gaadhista | Taageero | ||
| Xawaaraha Shutter | 1/1 ~ 1/30000s | ||
| Habka diiradda | Auto/Manual/Semi Auto | ||
| Defog Electronic | Taageero | ||
| Dhimista Xasaradaha kulaylka | Taageero | ||
| leexleex | Taageero | ||
| EIS | Taageero | ||
| Soo Dhaweynta Dijital ah | 16x | ||
| Xakamaynta Dibadda | TTL | ||
| Interface | 4pin Ethernet port, 6pin serial & power port, 5pin Audio port.30pin LVDS | ||
| Hab-maamuuska Isgaarsiinta | SONY VISCA, Pleco D/P | ||
| Xaaladaha Shaqada | -30~+60°C/20%~80%RH | ||
| Xaaladaha Kaydinta | -40~+70°C/20%~95%RH | ||
| Bixinta Korontada | DC 12V | ||
| Isticmaalka Korontada (TBD) | Celceliska: 6W; ugu badnaan: 11W | ||

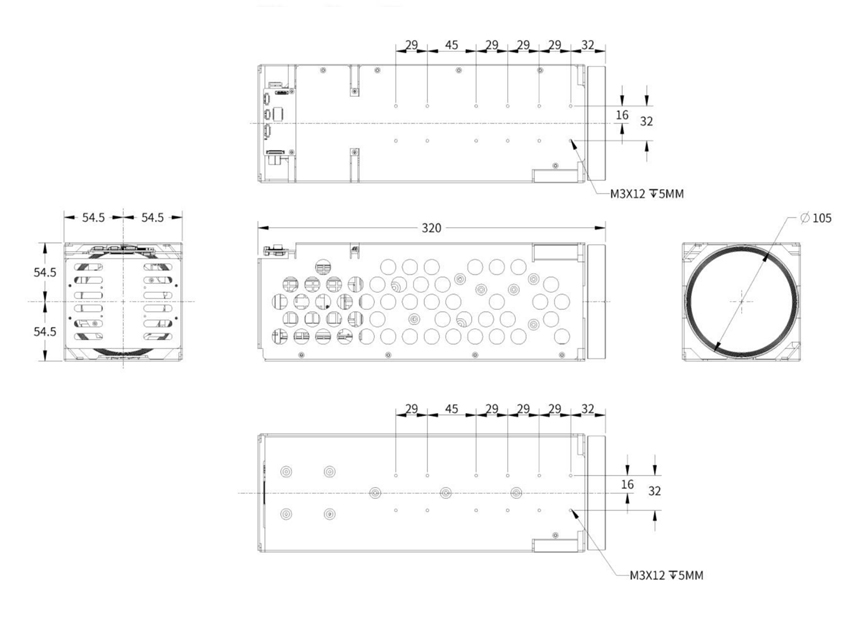

| Cabirka (L*W*H) | Qiyaastii 320mm*109mm*109mm | ||
| Miisaanka | 3.1kg | ||
Interface Network
| Nooca | Lambarka PIN | Magaca PIN | Sharaxaada |
| J2_4pin Ethernet Interface | 1 | ETHRX- | Deked Ethernet Adaptive, Internet RX- |
| 2 | ETHRX+ | Deked Ethernet Adaptive, Internet RX+ | |
| 3 | ETHTX- | Dekadda Ethernet Adaptive, Internet TX- | |
| 4 | ETHTX+ | Deked Ethernet Adaptive, Internet TX+ | |
| J3_6pin Power & Interface UART | 1 | DC_IN | DC12V |
| 2 | GND | GND | |
| 3 | RXD1 | Heerka TTL 3.3V, Pelco Protocol | |
| 4 | TXD1 | Heerka TTL 3.3V, Pelco Protocol | |
| 5 | RXD0 | Heerka TTL 3.3V, Visca Protocol | |
| 6 | TXD0 | Heerka TTL 3.3V, Visca Protocol | |
| J1_5pin Audio Interface | 1 | AUDIO_OUT | Maqalka Banaanka (Line Out) |
| 2 | GND | GND | |
| 3 | AUDIO_IN | Maqalka Gudaha (Line In) | |
| 4 | GND | GND | |
| 5 | NC | NC |
Interface LVDS
| Dekedda | Tirada | Magaca PIN | Sharaxaada |
| J4_30pin LVDS Interface (La mid ah SONY 30pin Digital Interface) | 1 | NC | NC |
| 2 | NC | ||
| 3 | NC | ||
| 4 | NC | ||
| 5 | NC | ||
| 6 | NC | ||
| 7 | NC | ||
| 8 | NC | ||
| 9 | GND | GND | |
| 10 | GND | ||
| 11 | GND | ||
| 12 | GND | ||
| 13 | DC | Wax soo saarka DC (DC+7V~+12V) | |
| 14 | DC | ||
| 15 | DC | ||
| 16 | DC | ||
| 17 | DC | ||
| 18 | UART1_TX | Heerka TTL 3.3V, borotokoolka VISCA, oo la mid ah TXD0 ee J3_6pin Port. Laakin isku mar lama xiriiri karo. | |
| 19 | UART1_RX | Heerka TTL 3.3V, borotokoolka VISCA, oo la mid ah RXD0 ee J3_6pin Port. Laakin isku mar lama xiriiri karo. | |
| 20 | GND | GND | |
| 21 | TXOUT0- | ||
| 22 | TXOUT0+ | ||
| 23 | TXOUT1- | ||
| 24 | TXOUT1+ | ||
| 25 | TXOUT2- | ||
| 26 | TXOUT2+ | ||
| 27 | TXOUTCLK- | ||
| 28 | TXOUTCLK+ | ||
| 29 | TXOUT3- | ||
| 30 | TXOUT3+ |
